Name: PHILIPS RS216 RC Rd D55 5W 40K 36D WH 9290 047 86310
Brand: Honnex Lighting
SKU: 04619
Availability: InStock
Rating: 5 (1 reviews)

Home > PHILIPS LED INDOOR LIGHT > PHILIPS SPOTLIGHT > PHILIPS RS216

PHILIPS RS216 RC Rd D55 5W 40K 36D WH 9290 047 86310

Description

Recessed Spotlight · D55

CRI 90

True-Color Rendering

15,000 hrs

L70B50 @ 25°C

IP20

All-Metal · Indoor Recessed

RS216 Series Deep Anti-Glare 4000K Neutral White

Philips’ deep-recessed LED spotlight family — the light source sits hidden inside an all-metal body behind a nickel-black reflector, cutting glare at its source. Four cutout sizes from 55 mm to 125 mm, 5W–35W, three beam angles, true-color CRI 90.

A Philips deep-recessed spotlight — 5W, 4000K Neutral White, 36° beam, white finish with a nickel-black reflector. CRI 90, all-metal body, external driver. Suited to museum-style display cases, cabinet and artwork accents, and intimate residential details.

PHILIPS RS216 RC Rd D55 5W 40K 36D WH 9290 047 86310

5W5W · 4000K · 36° beam · D55 · WH12NC: 9290 047 86310

Color Temperature

2 CCTs across the range — 3000K / 4000K. This model: 4000K (NW). All 36 RS216 SKUs available — mixed orders welcome.

Request Bulk Quote

✓ 15+ Years Philips Expertise ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ Signify Genuine Product

Gallery

Product Images

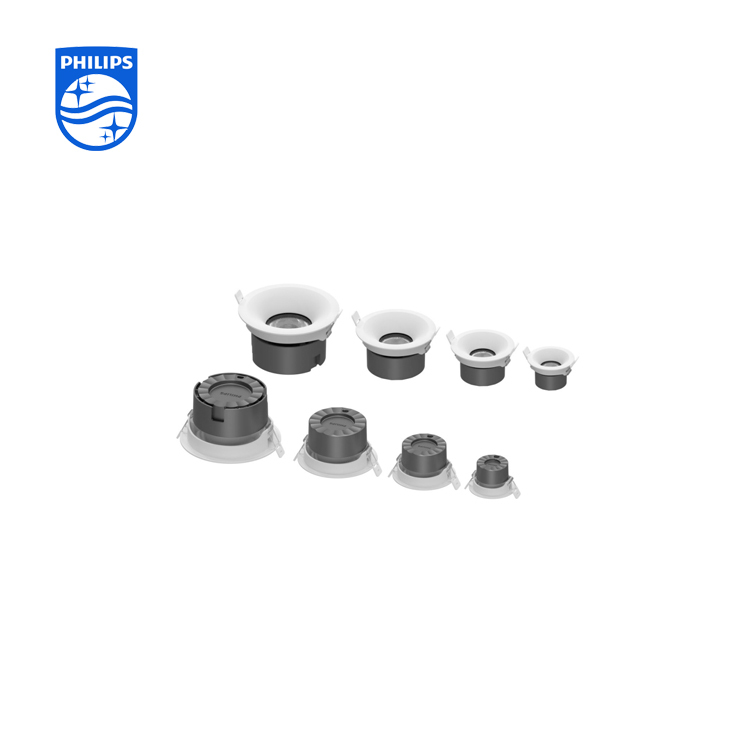

View the RS216 RS216 RC Rd D55 5W 40K 36D WH from every angle.

Designed for premium interiors

Deep-recessed anti-glare. True-color CRI 90. 5W, 4000K, 36° beam.

Deep-Recessed Anti-Glare

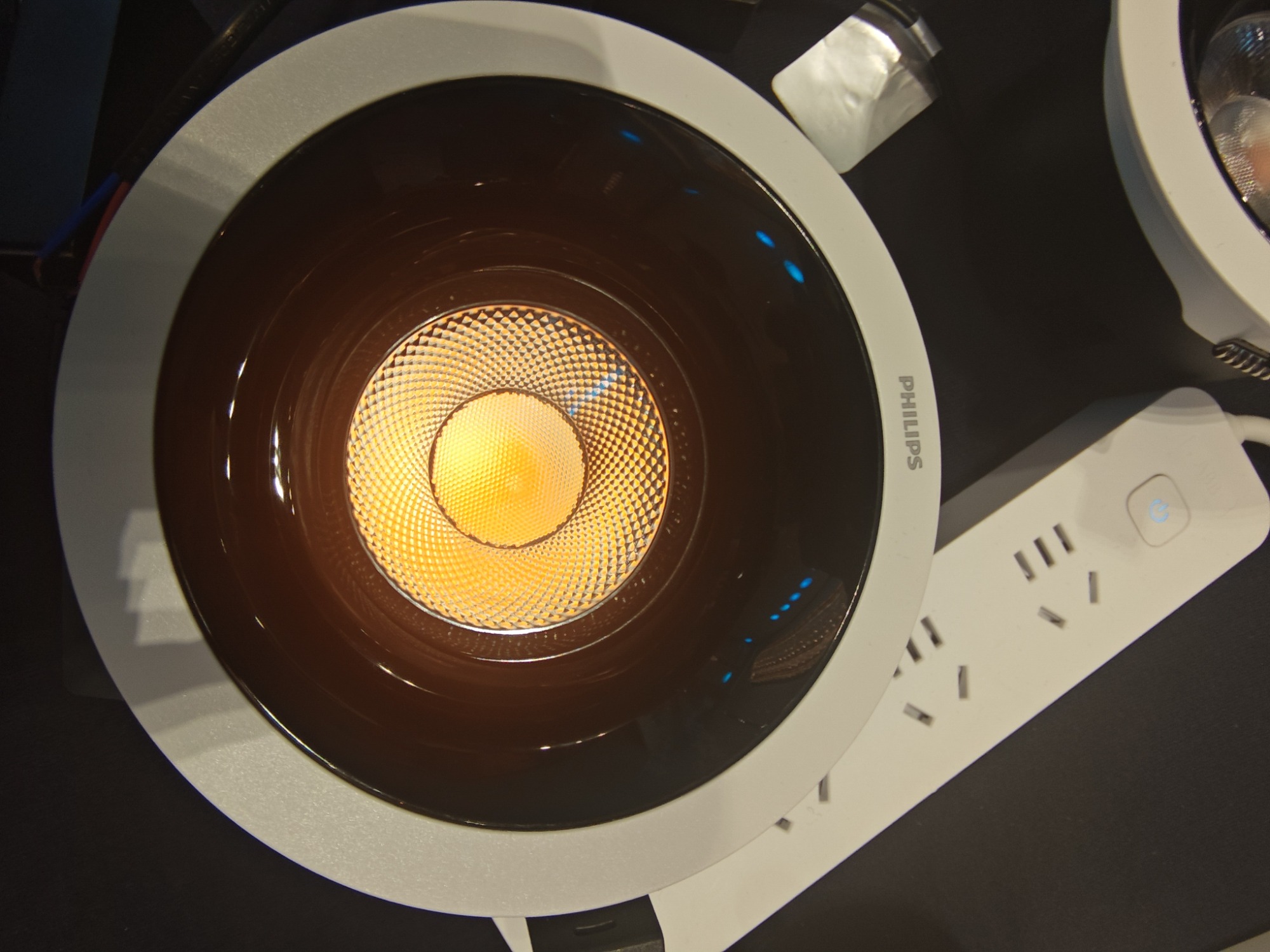

The LED hides deep inside the housing behind a nickel-black specular reflector — the source stays out of sight, suppressing glare and reducing visual fatigue.

True-Color CRI 90

CRI 90 full-spectrum rendering restores true colors — merchandising, artwork and interiors read the way they should.

Wave-Form Heat-Sink Design

The sculpted all-metal body doubles as the heat sink — dependable thermal performance with a clean architectural look.

36° Beam

This model ships with the 36° beam — a medium flood between spot and wash. The other beams share the same housing and cutout for this wattage.

External Driver

Runs on a separate driver wired to 220–240V mains — flexible installation and easy maintenance.

D55 Format · All-Metal Body

Fixture body Φ63 × 40.5 mm, cutout 55–57 mm — check plenum depth and driver position before installation.

Performance

Technical Specifications — 5W / 4000K / 36°

Exact specifications for the Philips RS216 RS216 RC Rd D55 5W 40K 36D WH (12NC 9290 047 86310). Luminous flux for the 36°/50° versions is not listed in the launch notice — request the exact figure from our sales team.

Color Temperature

4000K Neutral White

Luminous Flux

Not stated in the launch notice — available on request

Beam Angle

36°

Color Rendering

CRI 90

Power Factor

0.5

Reflector

Nickel-black specular interior · white trim

Ingress Protection

IP20 (indoor)

Body

All-metal, wave-form heat-sink design

Input Voltage

220–240V ~ 50/60Hz

Driver

External (separate)

Rated Lifetime

15,000 hrs (L70B50 @ 25°C)

Cutout

55–57 mm

Luminaire Dimensions (D × H)

Φ63 × 40.5 mm

How to order

Ordering Guide — 36 SKUs

Complete RS216 range with ordering codes. Your selected model is highlighted below.

12NC	Description	Watts	CCT	Beam	Qty/Ctn
9290 041 51110	RS216 RC Rd D55 5W 30K 24D WH	5W	3000K	24°	24
9290 041 51210	RS216 RC Rd D55 5W 40K 24D WH	5W	4000K	24°	24
9290 041 51310	RS216 RC Rd D75 7W 30K 24D WH	7W	3000K	24°	24
9290 041 51410	RS216 RC Rd D75 7W 40K 24D WH	7W	4000K	24°	24
9290 041 51510	RS216 RC Rd D75 9W 30K 24D WH	9W	3000K	24°	24
9290 041 51610	RS216 RC Rd D75 9W 40K 24D WH	9W	4000K	24°	24
9290 041 51710	RS216 RC Rd D95 15W 30K 24D WH	15W	3000K	24°	24
9290 041 51810	RS216 RC Rd D95 15W 40K 24D WH	15W	4000K	24°	24
9290 041 51910	RS216 RC Rd D120 25W 30K 24D WH	25W	3000K	24°	12
9290 041 52010	RS216 RC Rd D120 25W 40K 24D WH	25W	4000K	24°	12
9290 041 52110	RS216 RC Rd D120 35W 30K 24D WH	35W	3000K	24°	12
9290 041 52210	RS216 RC Rd D120 35W 40K 24D WH	35W	4000K	24°	12
9290 047 86210	RS216 RC Rd D55 5W 30K 36D WH	5W	3000K	36°	24
9290 047 86310	RS216 RC Rd D55 5W 40K 36D WH	5W	4000K	36°	24
9290 047 86410	RS216 RC Rd D75 7W 30K 36D WH	7W	3000K	36°	24
9290 047 86510	RS216 RC Rd D75 7W 40K 36D WH	7W	4000K	36°	24
9290 047 86610	RS216 RC Rd D75 9W 30K 36D WH	9W	3000K	36°	24
9290 047 86710	RS216 RC Rd D75 9W 40K 36D WH	9W	4000K	36°	24
9290 047 86810	RS216 RC Rd D95 15W 30K 36D WH	15W	3000K	36°	24
9290 047 86910	RS216 RC Rd D95 15W 40K 36D WH	15W	4000K	36°	24
9290 047 87010	RS216 RC Rd D120 25W 30K 36D WH	25W	3000K	36°	12
9290 047 87110	RS216 RC Rd D120 25W 40K 36D WH	25W	4000K	36°	12
9290 047 87210	RS216 RC Rd D120 35W 30K 36D WH	35W	3000K	36°	12
9290 047 87310	RS216 RC Rd D120 35W 40K 36D WH	35W	4000K	36°	12
9290 047 87410	RS216 RC Rd D55 5W 30K 50D WH	5W	3000K	50°	24
9290 047 87510	RS216 RC Rd D55 5W 40K 50D WH	5W	4000K	50°	24
9290 047 87610	RS216 RC Rd D75 7W 30K 50D WH	7W	3000K	50°	24
9290 047 87710	RS216 RC Rd D75 7W 40K 50D WH	7W	4000K	50°	24
9290 047 87810	RS216 RC Rd D75 9W 30K 50D WH	9W	3000K	50°	24
9290 047 87910	RS216 RC Rd D75 9W 40K 50D WH	9W	4000K	50°	24
9290 047 88010	RS216 RC Rd D95 15W 30K 50D WH	15W	3000K	50°	24
9290 047 88110	RS216 RC Rd D95 15W 40K 50D WH	15W	4000K	50°	24
9290 047 88210	RS216 RC Rd D120 25W 30K 50D WH	25W	3000K	50°	12
9290 047 88310	RS216 RC Rd D120 25W 40K 50D WH	25W	4000K	50°	12
9290 047 88410	RS216 RC Rd D120 35W 30K 50D WH	35W	3000K	50°	12
9290 047 88510	RS216 RC Rd D120 35W 40K 50D WH	35W	4000K	50°	12

Looking for the complete overview? See the RS216 series page →Also available in 3000K →Upgrade to the 7W version (same 4000K 36°) →

The full range

All 36 Configurations

Compare the complete RS216 range — color temperatures, beam angles and luminaire sizes for every configuration.

All Color Temperatures — 5W

3000K Warm White4000K Neutral White

All Beam Angles — 5W

24° (adjustable)36°50°

Luminaire Sizes

Φ63 × 40.5 mm (cutout 55–57 mm)

Φ85 × 50 mm (cutout 75–78 mm)

15W

Φ110 × 66 mm (cutout 95–100 mm)

25W

Φ138 × 90 mm (cutout 120–125 mm)

35W

Φ138 × 90 mm (cutout 120–125 mm)

Common questions

FAQ — 5W / 4000K / 36°

What is the 5WW 4000K 36° RS216 best for?

This 5WW model outputs in 4000K Neutral White and fits a 55–57 mm ceiling cutout. Its 36° beam is a medium flood between spot and wash, which makes it a natural fit for museum-style display cases, cabinet and artwork accents, and intimate residential details. It is the entry output step of the RS216 range. The launch notice does not state the lumen output for the 36°/50° versions — request the exact figure from our sales team.

Will the D55 fit my ceiling?

The fixture body measures Φ63 × 40.5 mm (D × H) and needs a 55–57 mm cutout. Check that your plenum offers clearance for the full body height plus the external driver position above the ceiling.

Does this model need an external driver?

Yes — like every RS216, the 5WW version runs on a separate driver wired to 220–240V ~ 50/60Hz mains. Keeping the driver external means easier maintenance and a compact fixture body; plan its position above the ceiling or in a serviceable remote box.

Which beam angle suits my space — and can I switch later?

This SKU is the 36° version: a medium flood between spot and wash. The other beams (24° / 36° / 50°) share the same housing and cutout for this wattage, so you can move between beams by ordering the sibling SKU — the installation and cutout stay identical.

Can I mix color temperatures or beam angles in one order?

Yes. The RS216 family has 36 orderable configurations (6 wattages × 3 beams × 2 CCTs, all white) and mixed orders are welcome — useful when a project combines accent (24°), task (36°) and wash (50°) layers. This model is 4000K Neutral White; the same wattage and beam is also available in 3000K Warm White. Cartons are 24 pieces for this model.

How long does it last, and what maintenance should I plan?

Rated lifetime is 15,000 hours (L70B50 @ 25°C) — at typical commercial hours that is several years of daily use before light output declines to 70%. The all-metal wave-form heat sink protects the LED, and because the driver is external, a driver swap never means opening the fixture. Pearl-white spare reflectors are available for the D55 if finishes need refreshing.
