CertaDrive LED drivers are designed to fulfill the market need for essential lighting with reliable performance. The CertaDrive LED drivers offer basic specifications with specific current and voltage settings which are easy to use for high volume applications. The CertaDrive range is optimal to operate mid-power LEDs from different manufacturers.
Benefits •Driver design based on Philips’ experience and knowledge of conventional fluorescent and HID technologies • Various power wattage Drivers that are related to the lumen packages/applications • Fixed output Drivers • Independent-version housing design for stand-alone installations
Features • SELV output for simpler approval process and easy design-in • Specific current and voltage • 35,000 hours life time • Fast Time to Market • Affordable LED Drivers
Application •Office • Public areas • For luminaires of protection class II
929001416080
CertaDrive 30W 0.7A 42V 230V I
929001416180
CertaDrive 34W 0.8A 42V 230V I
929001416280
CertaDrive 38W 0.9A 42V 230V I
929001416380

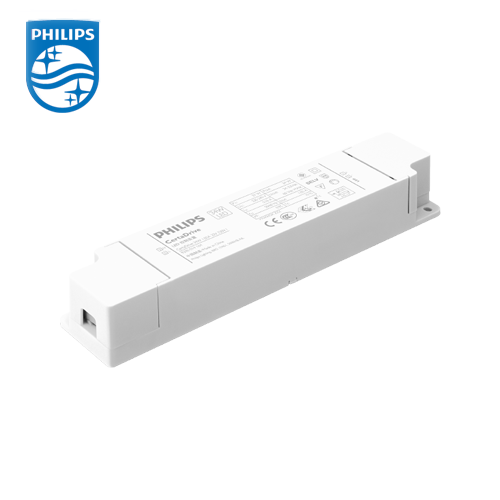

CertaDrive 44W 1.05A 42V 230V I
929001416480
CertaDrive 34W 1.05A 32V 230V I
DETAIL DATA Output voltage:32 to 42 Vdc Output current: 1.05 A Output power: 33.6 to 44 W Pieces per box: 50 Driver lifetime: 30,000 hours Control method: Fixed
