Description

100 lm/W

Efficacy

IP65 / IK06

Ingress & Impact Protection

20,000 hrs

Lifespan L70B50

10W – 200W

8 Power Options · 24 SKUs

4th Generation IP65 Waterproof

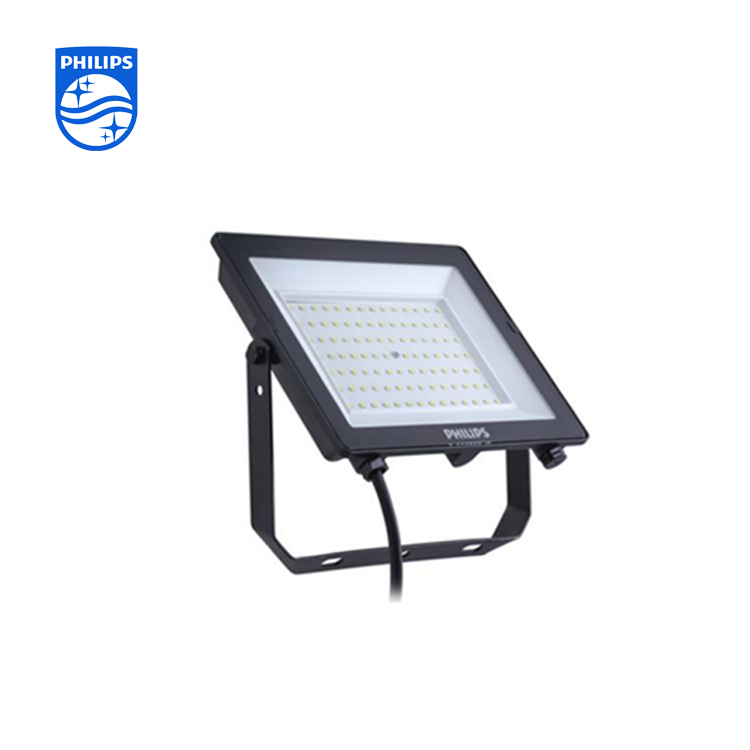

PHILIPS BVP150 G4 LED Floodlight

Name: PHILIPS BVP150 G4 LED Floodlight
Brand: Honnex Lighting
SKU: 04459
Availability: InStock
Rating: 5 (1 reviews)

The 4th generation of Philips' best-selling entry-level LED floodlight — DoB compact design, die-cast aluminum housing, trusted by professionals worldwide.

Step 1: Select Watts

10W 20W 30W 50W 70W 100W 150W 200W

Step 2: Select Color Temperature

3000K Warm White 4000K Neutral White 6500K Cool White

Request Bulk Quote

✓ 15+ Years Philips Expertise ✓ Large Inventory ✓ Worldwide Shipping ✓ CE · CB · CQC

Gallery

Product Images

View the BVP150 G4 from every angle.

Designed for the outdoors

Rugged die-cast aluminum. Tempered glass. 0°–360° rotation. Breather valve. -40°C to +50°C.

Rugged Die-Cast Aluminum

One-piece corrosion-resistant shell, RAL 9011. Back fins on 50–200W for passive cooling. -40°C to +50°C operation.

IP65 Sealed + Breather Valve

Full dust/water jet protection. Breather valve prevents condensation. Ideal for coastal installations.

DoB Driver-on-Board

Integrated driver — no external box. 15% slimmer than G3. Fully compatible with G3 mounts.

Anti-Counterfeit

Internal Philips logo. Laser-engraved labels. 12NC code + EAN barcode traceability.

0°–360° Full-Range Bracket

Hex-head bolts for precise aiming. Backward compatible with G3 hole positions.

CQC · CE · CB Certified

CQC safety standards. CE/CB international. Surge protection, Class I insulation.

Performance

Technical Specifications

Identical electrical and photometric performance to BVP150 G3. Full backward compatibility.

Luminous Flux

10W: 1,000 lm20W: 2,000 lm30W: 3,000 lm 50W: 5,000 lm70W: 7,000 lm100W: 10,000 lm 150W: 15,000 lm200W: 20,000 lm

Efficacy

100 lm/W (all wattages)

Color Temperature

3000K (WW) / 4000K (NW) / 6500K (CW)

Beam Angle

SWB — Super Wide Beam 110° ±10°

CRI

≥ 80

Power Factor

≥ 0.9

Input Voltage

220V – 240V AC, 50/60Hz

Driver Type

DoB (Driver-on-Board) — integrated, no external driver needed

THD

< 20%

IP / IK Rating

IP65 / IK06

Housing

Die-cast Aluminum, RAL 9011 finish

Cover

Tempered Glass

Lifespan

20,000 hrs L70B50 @25°C

Operating Temperature

-40°C to +50°C

Insulation Class

Class I

Certifications

CQC, CE, CB

How to order

Ordering Guide — 24 SKUs

All 24 SKUs with 12NC ordering codes and packaging quantities. Watts highlighted for quick scanning.

12NC	Description	Watts	CCT	Qty/Ctn
9114 018 60388	BVP150 LED10/WW PSU 10W SWB G4 CN	10W	3000K	36
9114 018 60488	BVP150 LED10/NW PSU 10W SWB G4 CN	10W	4000K	36
9114 018 60588	BVP150 LED10/CW PSU 10W SWB G4 CN	10W	6500K	36
9114 018 60688	BVP150 LED20/WW PSU 20W SWB G4 CN	20W	3000K	36
9114 018 60788	BVP150 LED20/NW PSU 20W SWB G4 CN	20W	4000K	36
9114 018 60888	BVP150 LED20/CW PSU 20W SWB G4 CN	20W	6500K	36
9114 018 60988	BVP150 LED30/WW PSU 30W SWB G4 CN	30W	3000K	24
9114 018 61088	BVP150 LED30/NW PSU 30W SWB G4 CN	30W	4000K	24
9114 018 61188	BVP150 LED30/CW PSU 30W SWB G4 CN	30W	6500K	24
9114 018 61288	BVP150 LED50/WW PSU 50W SWB G4 CN	50W	3000K	24
9114 018 61388	BVP150 LED50/NW PSU 50W SWB G4 CN	50W	4000K	24
9114 018 61488	BVP150 LED50/CW PSU 50W SWB G4 CN	50W	6500K	24
9114 018 61588	BVP150 LED70/WW PSU 70W SWB G4 CN	70W	3000K	12
9114 018 61688	BVP150 LED70/NW PSU 70W SWB G4 CN	70W	4000K	12
9114 018 61788	BVP150 LED70/CW PSU 70W SWB G4 CN	70W	6500K	12
9114 018 61888	BVP150 LED100/WW PSU 100W SWB G4 CN	100W	3000K	12
9114 018 61988	BVP150 LED100/NW PSU 100W SWB G4 CN	100W	4000K	12
9114 018 62088	BVP150 LED100/CW PSU 100W SWB G4 CN	100W	6500K	12
9114 018 62188	BVP150 LED150/WW PSU 150W SWB G4 CN	150W	3000K	6
9114 018 62288	BVP150 LED150/NW PSU 150W SWB G4 CN	150W	4000K	6
9114 018 62388	BVP150 LED150/CW PSU 150W SWB G4 CN	150W	6500K	6
9114 018 62488	BVP150 LED200/WW PSU 200W SWB G4 CN	200W	3000K	6
9114 018 62588	BVP150 LED200/NW PSU 200W SWB G4 CN	200W	4000K	6
9114 018 62688	BVP150 LED200/CW PSU 200W SWB G4 CN	200W	6500K	6

Evolution

BVP150 G3 → G4 — What Changed

Same performance. Backward compatible. Smarter details. Up to 15% slimmer.

BVP150 G3

Standard gland connector
Conventional exterior wiring
Larger housing dimensions
Standard bracket screws
External model labels

→

BVP150 G4

Redesigned gland — reduces water siphoning
Optimized wire routing — lower siphoning risk
Slimmer in all wattages — up to 15% smaller
Revised bracket — backward compatible with G3
Internal Philips logo — anti-counterfeit

G4 Outer Dimensions (L2 × W2 × H in mm)

10W

104 × 99 × 24

20W

129 × 121 × 23

30W

182 × 143 × 23

50W

196 × 166 × 26

70W

249 × 216 × 25.7

100W

281 × 254 × 28.7

150W

357 × 312 × 30.7

200W

429 × 338 × 30.4

Common questions

FAQ

G4 vs G3 — what's the difference?

Mechanically refined, optically identical. Slimmer housing (up to 15%), improved gland to reduce siphoning, optimized exterior wiring. Performance specs are exactly the same. Backward compatible with G3 mounts.

What does DoB mean?

Driver-on-Board. The driver circuit is integrated onto the LED board — no external driver box. More compact, easier to install. Just connect to 220–240V AC mains.

Is it suitable for wet environments?

Yes. IP65 rated plus a built-in breather valve to vent moisture from siphoning. Tested from -40°C to +50°C. Designed for year-round outdoor use, including coastal and high-humidity areas.

Beam angle — can it be adjusted?

SWB 110° ±10° beam is fixed, but the body rotates 0°–360° on its bracket. For narrower beams, explore BVP280 or BVP384.

Can I mix color temperatures?

Absolutely. We stock all 24 SKUs and support mixed orders. Contact our sales team with your requirements for a custom quotation.

How does it compare to other Philips floodlights?

BVP150 is the entry-level workhorse. For higher output or narrower beams: BVP151 (alternate design), BVP280 (high power), BVP384 (professional sports).
